LANPWR 48V 5000W / 24V 3300W Inverter All-in-one Solar Charger

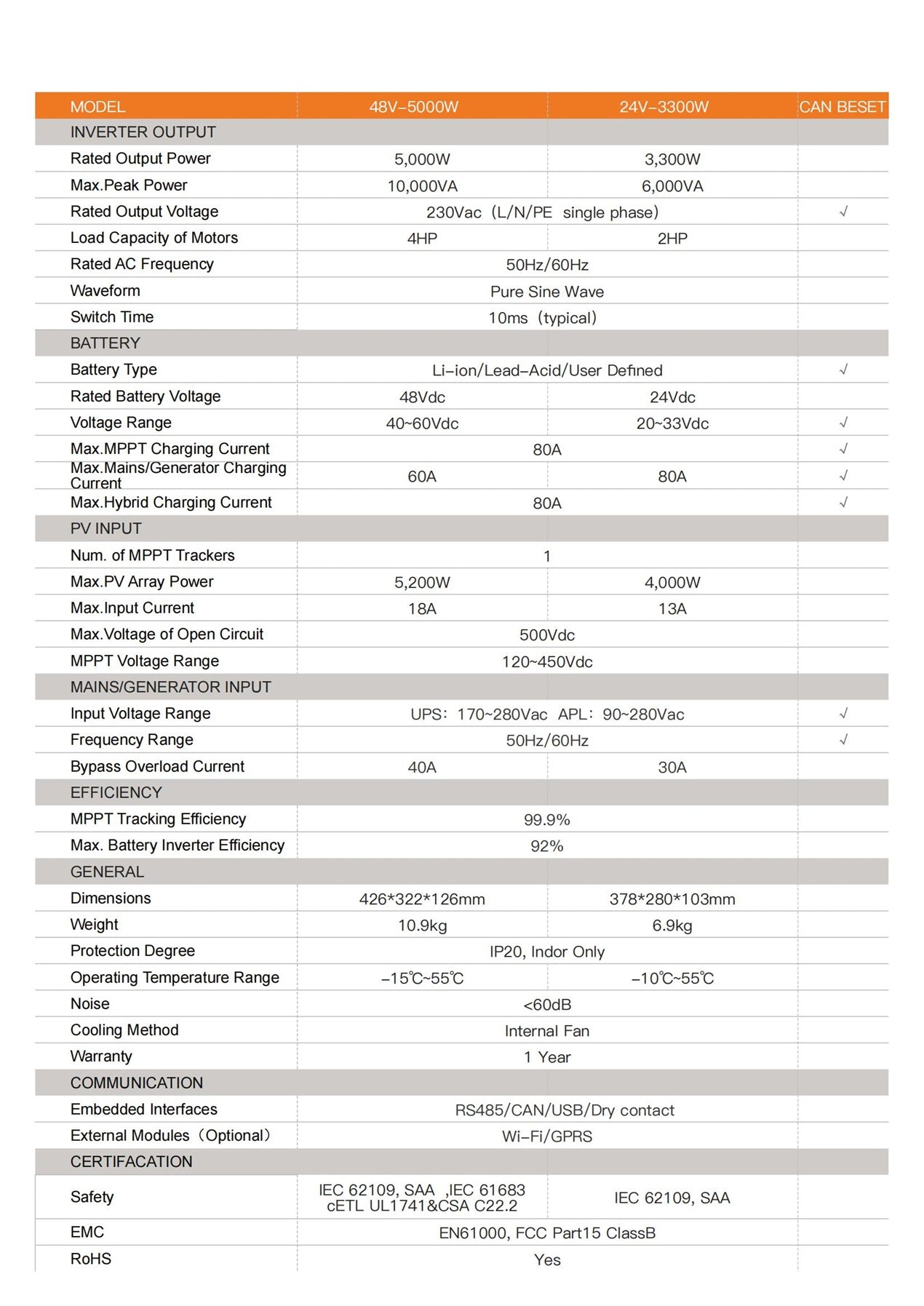

| Specs of LANPWR Inverter All in one solar charger | |||
| MODEL | 48V-5000W | 24V-3300W | CAN BESET |
| INVERTER OUTPUT | |||
| Rated Output Power | 5000W | 3300W | |
| Max.Peak Power | 10000VA | 6000VA | |
| Rated Output Voltage | 230Vac（L/N/PE single phase） | 230Vac（L/N/PE single phase） | √ |
| Load Capacity of Motors | 4HP | 2HP | |
| Rated AC Frequency | 50Hz/60Hz | 50Hz/60Hz | |
| Waveform | Pure Sine Wave | Pure Sine Wave | |
| Switch Time | 10ms（typical） | 10ms（typical） | |
| BATTERY | |||
| Battery Type | Li-ion/Lead-Acid/User Defined | Li-ion/Lead-Acid/User Defined | √ |
| Rated Battery Voltage | 48Vdc | 24Vdc | |
| Voltage Range | 40~60Vdc | 20~33Vdc | √ |
| Max.MPPT Charging Current | 80A | 80A | √ |
| Max.Mains/Generator Charging Current | 60A | 80A | √ |
| Max.Hybrid Charging Current | 80A | 80A | √ |
| PV INPUT | |||
| Num. of MPPT Trackers | 1 | 1 | |
| Max.PV Array Power | 5200W | 4000W | |
| Max.Input Current | 18A | 13A | |
| Max.Voltage of Open Circuit | 500Vdc | 500Vdc | |
| MPPT Voltage Range | 120~450Vdc | 120~450Vdc | |
| MAINS/GENERATOR INPUT | |||
| Input Voltage Range | UPS：170~280Vac APL：90~280Vac | UPS：170~280Vac APL：90~280Vac | √ |
| Frequency Range | 50Hz/60Hz | 50Hz/60Hz | √ |
| Bypass Overload Current | 40A | 30A | |
| EFFICIENCY | |||
| MPPT Tracking Efficiency | 99.90% | 99.90% | |
| Max. Battery Inverter Efficiency | 92% | 92% | |
| GENERAL | |||
| Dimensions | 426*322*126mm | 378*280*103mm | |
| Weight | 10.9kg | 6.9kg | |
| Protection Degree | IP20, Indor OnIy | IP20, Indor OnIy | |
| Operating Temperature Range | -15℃~55℃ | -10℃~55℃ | |
| Noise | <60dB | <60dB | |
| Cooling Method | InternaI Fan | InternaI Fan | |
| Warranty | 1 Year | 1 Year | |
| COMMUNICATION | |||
| Embedded Interfaces | RS485/CAN/USB/Dry contact | RS485/CAN/USB/Dry contact | |
| External Modules（Optional） | Wi-Fi/GPRS | Wi-Fi/GPRS | |
| CERTIFACATION | |||
| Safety | IEC 62109, SAA ,IEC 61683 cETL UL1741&CSA C22.2 |
IEC 62109, SAA | |
| EMC | EN61000, FCC Part15 ClassB | EN61000, FCC Part15 ClassB | |
| RoHS | Yes | Yes | |
